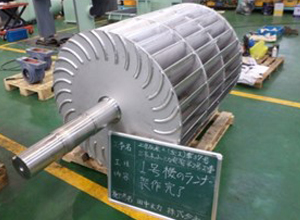

Crossflow Turbine

Tanaka Hydropower in Japan – SANBONGI PJ

-Manufacture, Shop test
-100kW * 2

Turbine Specification

-Flow rate : 2.0㎥/sec
-Head : 6.98m
-Output : 105kW

Voith Fuji in Japan – SHORENJI PJ

-Manufacture, Shop test
-177kW * 1, 25kW * 1

Turbine Specification

-Flow rate : 0.65㎥/sec
-Head : 35m
-Output : 177kW

Turbine Specification

-Flow rate : 0.1㎥/sec
-Head : 34m
-Output : 25kW

Korea Rural Community Corporation & Water Resources Engineering Corporation

-Manufacture, Shop test, Installation,
  Field test, Maintenance
-814kW*1

Turbine Specification

-Flow rate : 2.2㎥/sec
-Head : 47.2m
-Output : 814kW

Generator Specification

-Output : 750kW
-Pole : 8P
-Maker : HYUNDAI HEAVEY INDUSTRIES
-Type : Synchronous Generator

JSE in Japan - IBBONKIZAWA PJ

-Manufacture, Shop test, Maintenance
-24kW*1

Turbine Specification

-Flow rate : 0.12㎥/sec
-Head : 30m
-Output : 24kW

Generator Specification

-Maker : DNDE Generator IP51, 21kW 200V 61A

JSE in Japan - KITANOSAWA PJ

-Manufacture, Shop test, Installation
-123kW*1

Turbine Specification

-Flow rate : 0.43㎥/sec
-Head : 36.54m
-Output : 123kW

Korea Rural Community Corporation

-Manufacture, Shop test, Installation,
  Maintenance
-55kW*1

Turbine Specification

-Flow rate : 0.6㎥/sec
-Head : 11.99m
-Output : 55kW
